Clear View, Strong Protection
Soccer fields and golf courses require fencing that prevents balls from leaving the field while maintaining clear visibility for spectators.

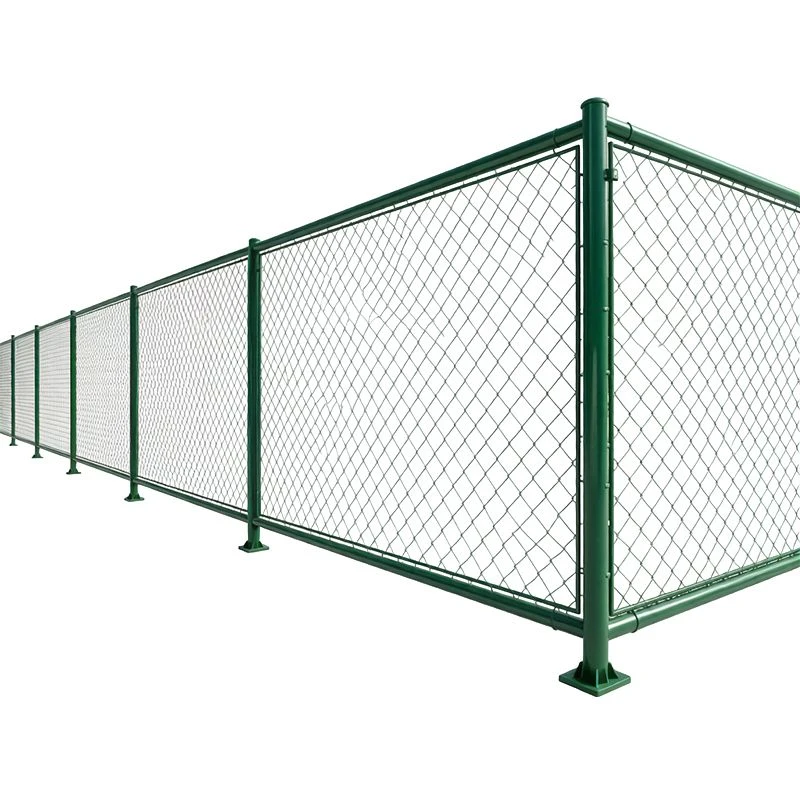

We use chain link fence weaving combined with plastic-coated steel wire. We do not produce heavy solid walls. Instead, we provide transparent yet strong sports protection systems. This sports field fencing keeps balls within the field while maintaining an open viewing experience.
Easy to Install, Hard to Climb
Our fencing system consists of three main parts: the frame, the mesh, and the connectors.
The mesh is made using chain link weaving technology, with a smooth and uniform surface that is difficult to climb. On-site installation is simple and efficient.
The plastic-coated wire has a diameter of 4.0 mm. Common mesh opening sizes are 50×50 mm and 60×60 mm. Standard panel width is 3000 mm, with height options ranging from 3000 mm to 4000 mm.
The posts use 75 mm round steel tubes with a wall thickness of 2.5 mm. This sports field fencing provides long-term, maintenance-free performance.
Key Data Table
|
Parameter |
Technical Requirement |
Standard |
|
Mesh Type |
Chain link fence weave |
Strong, visually open, anti-climb design |
|
Coated Wire |
4.0 mm |
Anti-aging and anti-corrosion protection |
|
Mesh Opening |
50×50 mm / 60×60 mm |
Standard sports field sizes |
|
Panel Size |
3000 mm (W) × 3000–4000 mm (H) |
Customizable according to project |
|
Post Size |
75 mm round tube, 2.5 mm wall thickness |
Structural support frame |
|
Cross Bar |
60 mm round tube, 2.0 mm wall thickness |
Reinforcement structure |
|
Colors |
Blue, dark green, grass green |
Dark green is most commonly used |
Why Buy This Product
We follow the Chinese standard GB/T 26941-2011 for sports fencing systems. Basketball court fencing is typically required to be at least 4 meters high, while tennis court fencing generally requires a height of at least 6.5 meters.
The hot-dip galvanized layer has a minimum thickness of 80 microns. The PVC coating thickness is at least 0.8 mm, ensuring strong corrosion resistance and long service life.
Our sports field fencing is designed to withstand impact testing, including a 10 kg weight drop from 1 meter height without deformation or mesh failure.
Choose our sports field fencing for reliable, safe, and long-lasting sports facility protection.
