Strong Barrier for High Security
Airports require extremely high levels of security. Standard fencing systems cannot prevent determined intrusion attempts.
We use 5.0 mm high-strength low-carbon steel wire for welding. A V-shaped stiffener is added in the middle of each mesh panel.
We do not manufacture ordinary fencing. We provide the primary physical security barrier for aviation protection systems. This airport fence is designed to prevent unauthorized entry and ensure perimeter safety.

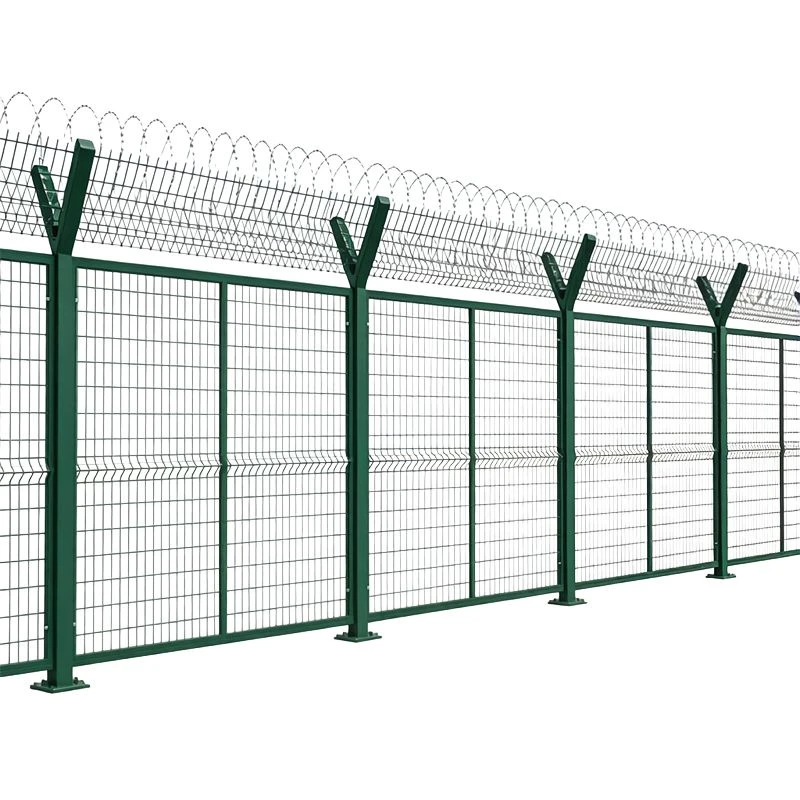

Tight Design Prevents Climbing
The fence is fabricated using 5.0 mm high-strength low-carbon steel wire. Common mesh openings include 50×100 mm and 50×200 mm.
Each panel is reinforced with a V-shaped stiffener in the center, significantly improving impact resistance and structural stability.
Posts are made from 60×60 mm square steel tubes with a wall thickness of at least 2 mm. The top of each post is equipped with a welded V-shaped bracket.
The clearance between mesh and post is controlled to less than 2 mm, while the gap between the mesh bottom and ground is less than 2 cm, effectively preventing climbing or crawling attempts.
We recommend installing hot-dip galvanized blade barbed wire at the top for enhanced security. This airport fence provides a comprehensive perimeter protection solution.
Key Data Table
|
Parameter |
Technical Requirement |
Safety Requirement |
|
Wire Diameter |
≥5.0 mm |
High-strength low-carbon steel |
|
Mesh Opening |
50×100 mm / 50×200 mm |
Standard security design |
|
Structural Reinforcement |
V-shaped stiffener |
Increased impact resistance |
|
Post Size |
60×60 mm square tube, ≥2 mm wall thickness |
V-shaped top bracket |
|
Clearance Control |
Mesh-to-post <2 mm; ground clearance <2 cm |
Anti-climb and anti-crawl design |
|
Corrosion Protection Life |
≥8 years |
Hot-dip galvanizing + polyester powder coating |
|
Blade Barbed Wire |
Diameter ≥500 mm, coil spacing 20–25 cm |
Optional high-security add-on |
|
Post Foundation |
Concrete base 500×500 mm, height 800 mm |
Stable structural foundation |
Why Buy This Product
The surface is treated with hot-dip galvanizing followed by polyester powder coating. Colors are available in the standard RAL color system, providing a service life of more than 10 years under normal conditions.
We provide customized design solutions based on your drawings and project requirements. On-site inspections by SGS or BV are supported.
Our airport fence is designed to meet international aviation security standards. Choose our solution for reliable and high-security perimeter protection in airport environments.
