Three Layers of Rust Protection
Highways require fencing that prevents unauthorized access while remaining easy to install and maintain.
We use a three-layer anti-corrosion system: hot-dip galvanizing, primer coating, and electrostatic powder spraying. All connections use anti-theft fasteners.
We do not manufacture fixed, non-serviceable barriers. We provide maintainable safety isolation systems. This framed guardrail fence is designed for long-term performance and reliability.
Strong Mesh with Easy Setup

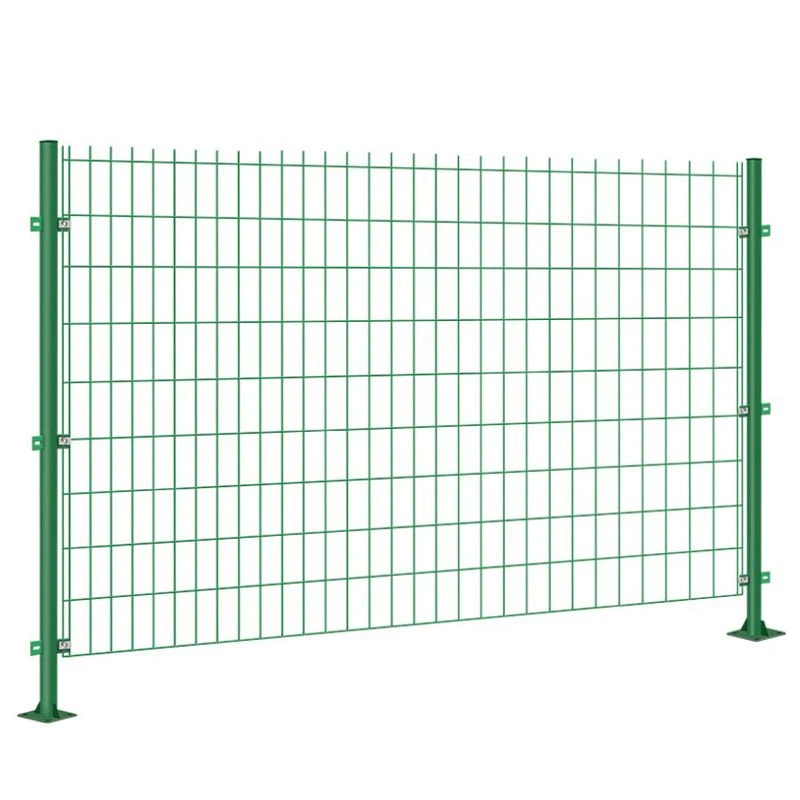

This product is also known as a framed isolation grid. We use high-quality steel wire rods as raw materials and weld them into mesh panels, which are then assembled with support posts.
The system prevents pedestrians and animals from entering restricted areas. It can function as a permanent safety barrier or a temporary protective fence depending on project requirements.
Mesh edges are designed with hook or twisted reinforcement structures to increase strength. Post options include round tubes and mushroom-shaped posts, both equipped with protective caps.
Posts can be installed either by direct burial (recommended depth of 50 cm) or by using base plates, depending on site conditions. This framed guardrail fence offers flexible installation options for various engineering projects.
Key Data Table
|
Parameter |
Technical Requirement |
Note |
|
Other Name |
Frame isolation grid |
Welded metal mesh panel system |
|
Anti-Corrosion Process |
Zinc + primer + powder coating |
Three-layer protection system |
|
Mesh Edge |
Hook edge / twisted edge |
Reinforced edge structure |
|
Post Type |
Round tube / mushroom-shaped tube |
With protective plastic cap |
|
Connection Method |
Anti-theft screws + metal clips |
Non-removable safety design |
|
Installation Method |
50 cm burial / base plate mounting |
Flexible installation options |
|
Standard Size |
50×50 mm mesh, height 1.8–2.0 m |
Customizable production |
Why Buy This Product

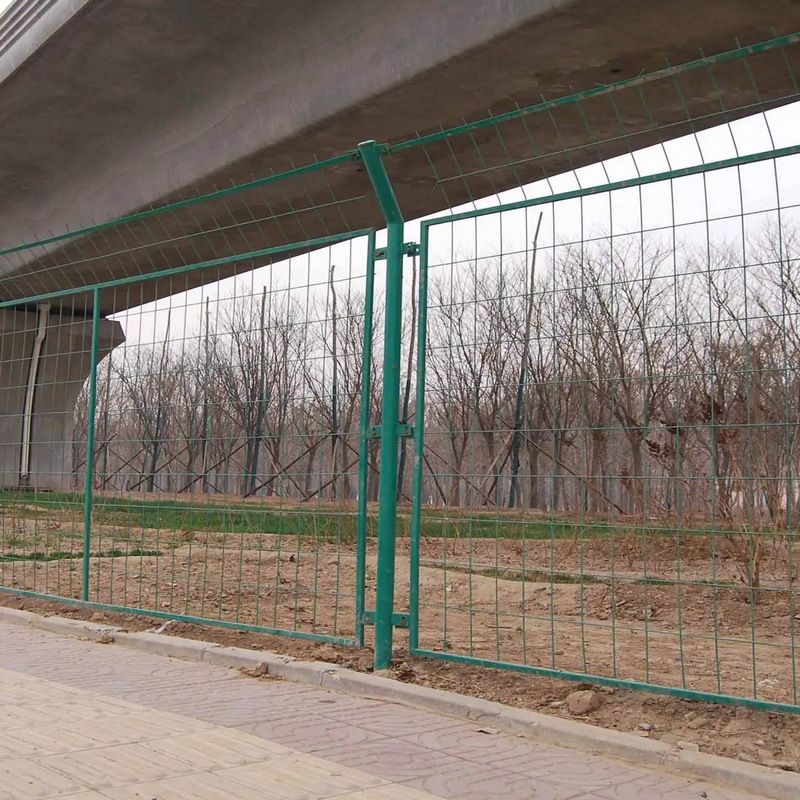

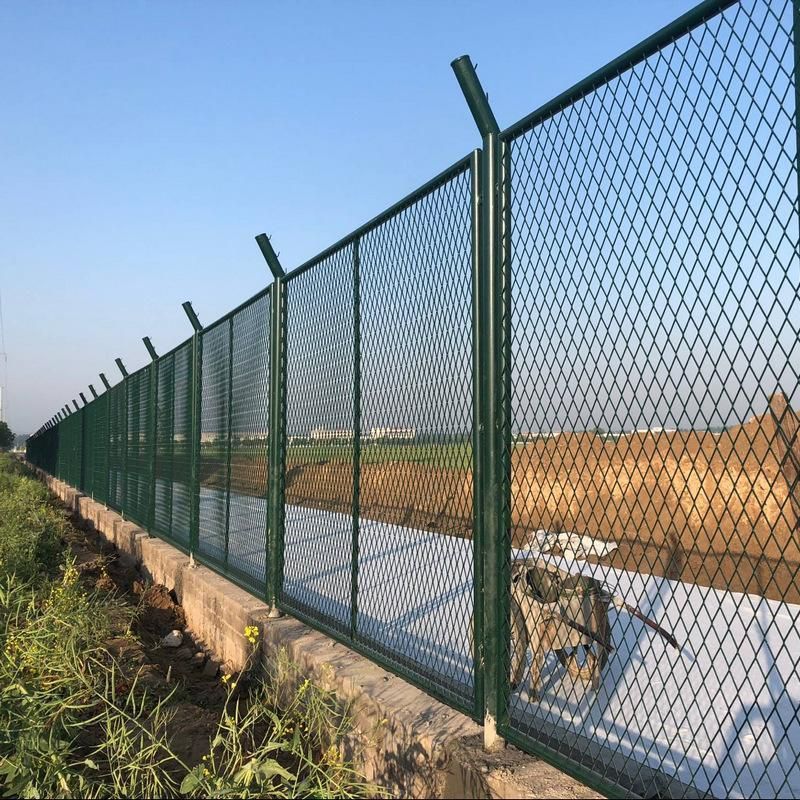

This product is widely used in highways, railways, and port facilities.
We ensure all posts are vertically aligned and all mesh panels remain flat after installation. We support FOB Tianjin Port pricing terms and provide detailed installation instructions.
Our framed guardrail fence passes salt spray corrosion testing, and the zinc coating fully complies with relevant industrial standards.
Choose our solution for reliable, durable, and high-performance highway safety protection.
