Strong Bond Between Bricks and Mortar
Masonry walls require a strong bond between bricks and mortar. Without adequate reinforcement, wall cracking may occur over time.
We use thin galvanized steel strip manufactured through a precision stamping process. We do not produce conventional diamond wire mesh. Instead, we produce a masonry reinforcement strip embedded directly within mortar joints.
This mesh for brickwork provides additional structural strength and improves overall wall integrity.
V-Shaped Grooves for Better Grip
The material is galvanized steel strip or stainless steel sheet. The standard thickness is 0.35 mm, with customizable options available upon request.

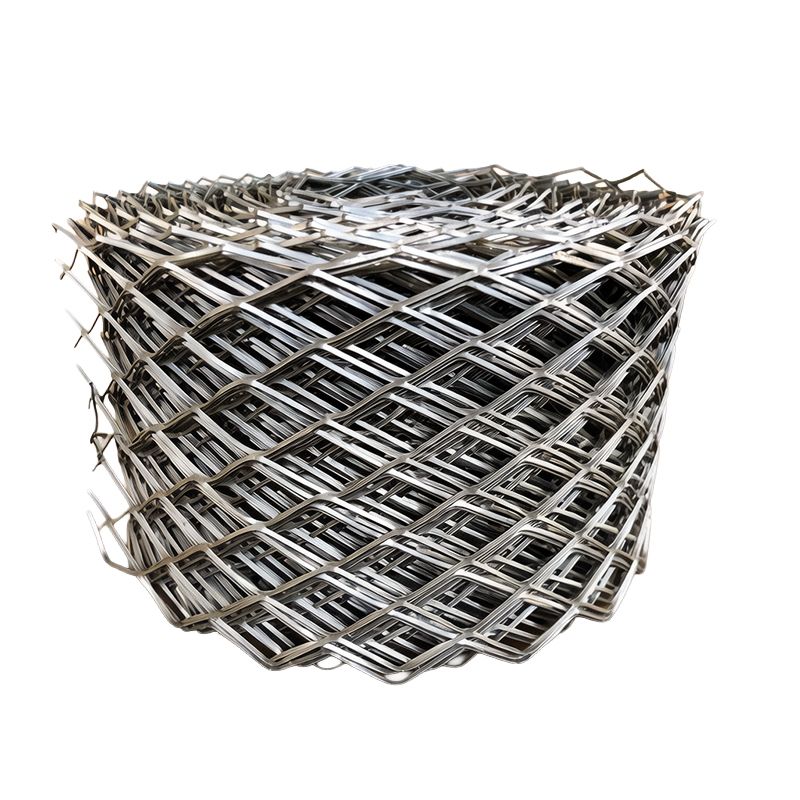

The product is supplied in roll form. Common widths include 6 cm and 10 cm. Additional widths of 15 cm, 20 cm, and 30 cm are also available. Roll length is customized, typically ranging from 10 to 100 meters per roll.
Unlike traditional diamond mesh, this product features a linear alignment structure along the length direction. The edges are reinforced with wider steel strips, while the central area is formed with V-shaped pressed grooves.
This structure significantly improves bonding strength with mortar and enhances resistance to cracking, tension, and vibration.
This mesh for brickwork ensures stable wall reinforcement.
Key Data Table
|
Parameter |
Technical Requirement |
Structural Feature |
|
Material |
Galvanized steel strip or stainless steel sheet |
Thin strip, precision stamped and expanded |
|
Standard Thickness |
0.35 mm (customizable) |
Can be adjusted per project requirement |
|
Product Form |
Roll |
Easy transport and installation |
|
Common Widths |
6 cm, 10 cm |
Also available in 15, 20, 30 cm |
|
Custom Length |
10 – 100 meters per roll |
Made to order |
|
Structural Pattern |
Linear alignment with V-shaped pressed grooves |
High bonding strength in mortar |
|
Reinforced Areas |
Wide edge strips on both sides |
Improves tensile, compressive, and vibration resistance |
|
Packaging |
Carton / pallet / wooden box |
Optional export packaging |
Why Buy This Product
Our product provides excellent tensile strength, compressive resistance, and thermal stability.
We recommend this mesh for masonry wall reinforcement to effectively reduce cracking and improve long-term structural performance.
Custom widths are available, and small trial orders are supported.
The stainless steel version is especially suitable for coastal environments and export projects.
We provide full material certificates and inspection reports upon request.
Choose this mesh for brickwork to achieve stronger and more durable masonry structures.
