Flat Surface for Hollow Walls
Hollow brick walls require precise reinforcement to ensure structural stability. All reinforcement wires must remain on the same horizontal plane to achieve uniform load distribution.
We use resistance welding technology to ensure that longitudinal and cross wires are welded on a single flat plane. We do not produce twisted or three-dimensional mesh structures. Instead, we create a flat reinforcement framework embedded within masonry.
This wire mesh brick wall provides a stable and straight internal skeleton for masonry structures.
Many Sizes for Different Wall Types
This product is manufactured using a controlled resistance welding process. All welding points are fully fused, ensuring high joint strength and long service life with improved corrosion resistance.
We use galvanized low-carbon steel wire as standard. For special applications, we also offer post-weld galvanizing or pre-galvanized steel options.
Wire diameters range from 1.6 mm to 6.5 mm. Mesh opening sizes range from 3 cm to 40 cm. Width options range from 2 cm to 36 cm. Standard lengths range from 1 meter to 6 meters, with customized production available up to 50 meters.

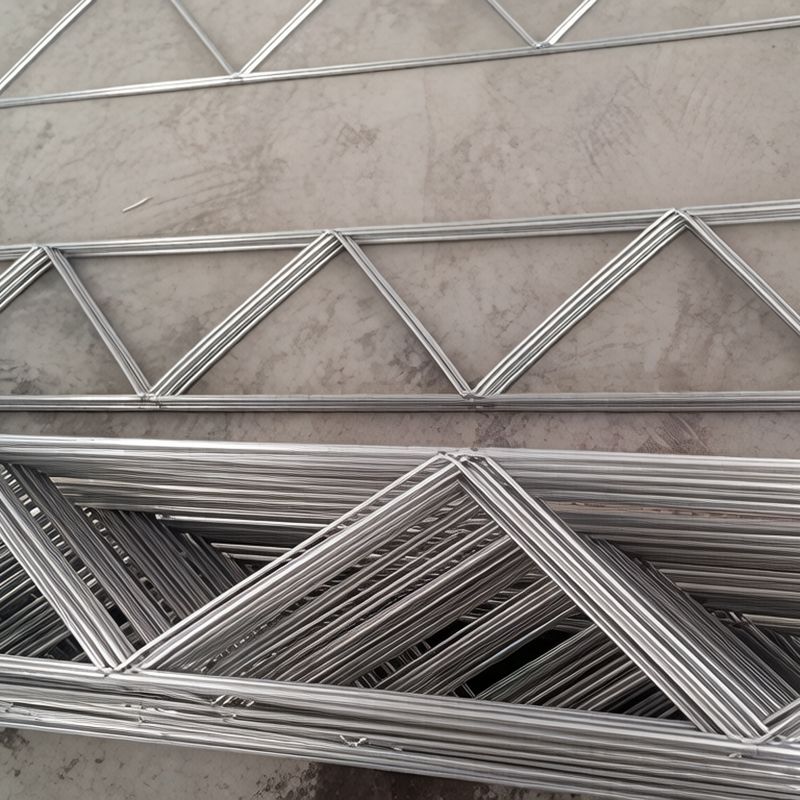

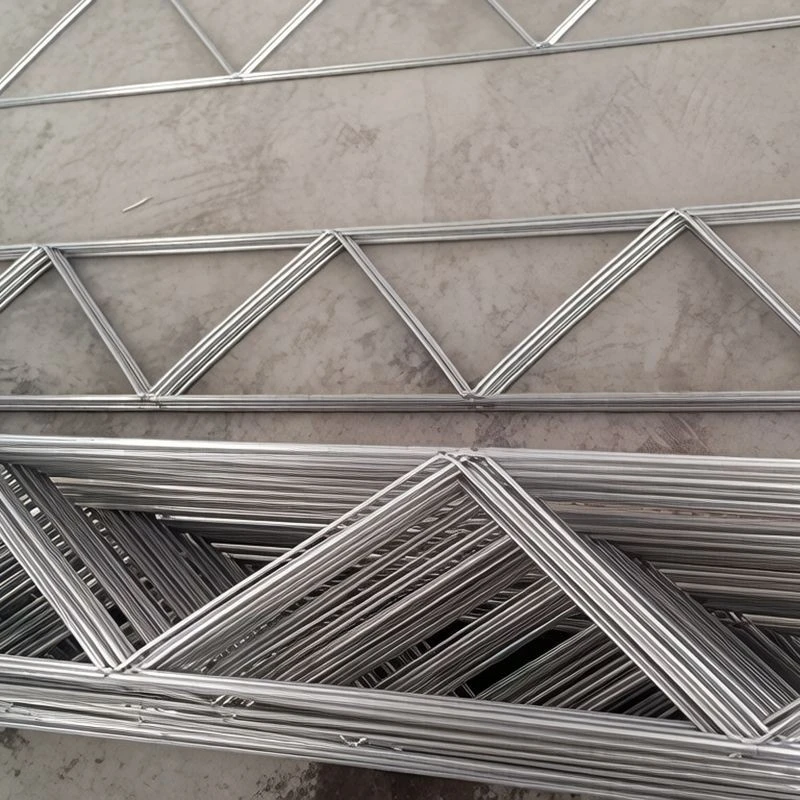

The mesh can be produced in trapezoidal or triangular configurations. Both two-wire and three-wire welded structures are available, depending on reinforcement requirements.

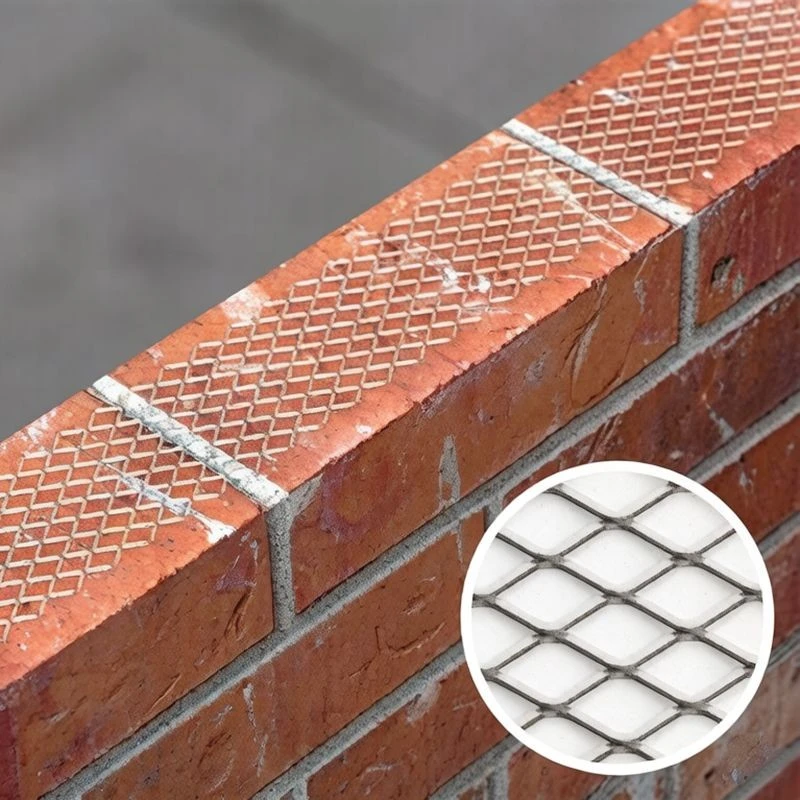

This wire mesh brick wall is designed to sit completely flat within mortar joints for maximum structural integration.
Key Data Table
|
Parameter |
Technical Requirement |
Structural Feature |
|
Process |
Resistance welding |
Fully fused joints, high corrosion resistance |
|
Material |
Galvanized low-carbon steel / post-galvanized option |
Customizable based on project requirements |
|
Wire Diameter |
1.6 mm – 6.5 mm |
Wide range of structural applications |
|
Mesh Opening |
3 cm – 40 cm |
Adjustable by design |
|
Width Range |
2 cm – 36 cm |
Custom production |
|
Length Range |
1 m – 6 m (up to 50 m available) |
Project-specific manufacturing |
|
Structure Type |
Trapezoid / Triangle; two-wire or three-wire welding |
All wires aligned in a single plane |
|
Packaging |
Bulk / pallet / wooden case |
Export-ready packaging options |
Why Buy This Product
We recommend installing this mesh at key stress zones within masonry and concrete mortar layers.
It effectively absorbs structural stress and vibration, improving overall wall stability and reducing crack formation.
This product is widely used in foundations, retaining walls, and load-bearing masonry structures.
All welding points are strong and durable. OEM customization is supported, including mesh size adjustments based on block dimensions.
Fast production and shipment are available.
Choose this wire mesh brick wall for stronger, more stable, and longer-lasting construction systems.
