Strong Support for Heavy Work Areas
This product provides a strong and reliable flooring solution. Industrial facilities need flooring that can support heavy loads while allowing light and air to pass through.
Conventional steel plates are often too heavy, while wire mesh does not provide sufficient strength. We use Q235B or Q345B flat steel bars as the primary material. Our automated press-welding process creates strong and durable joints throughout the grating.
We do not sell weak structures. We provide safe and dependable walking surfaces for workers in demanding industrial environments.
Hot Dip Zinc for Long Life

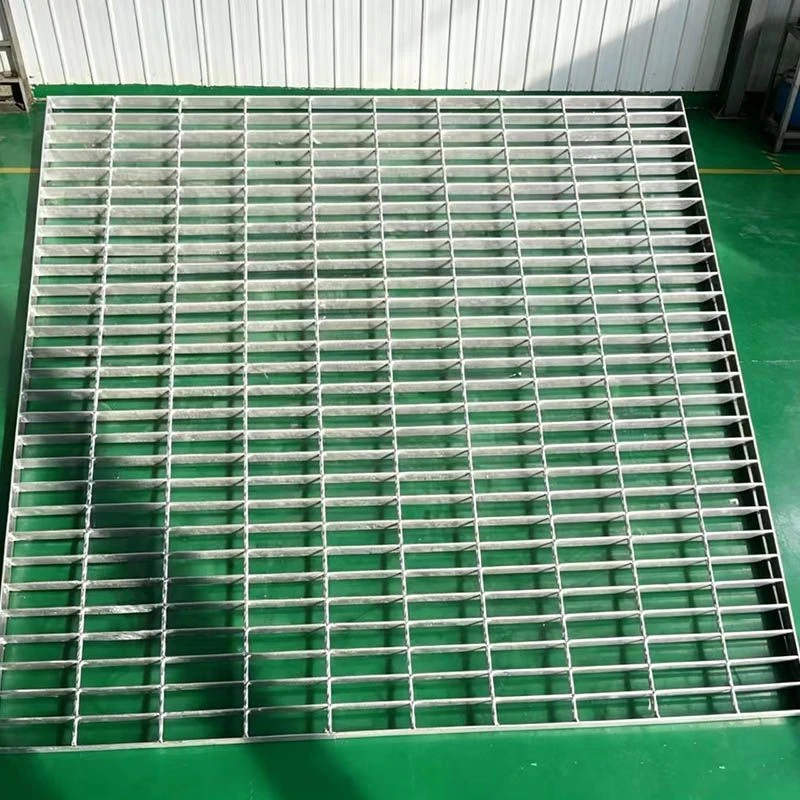

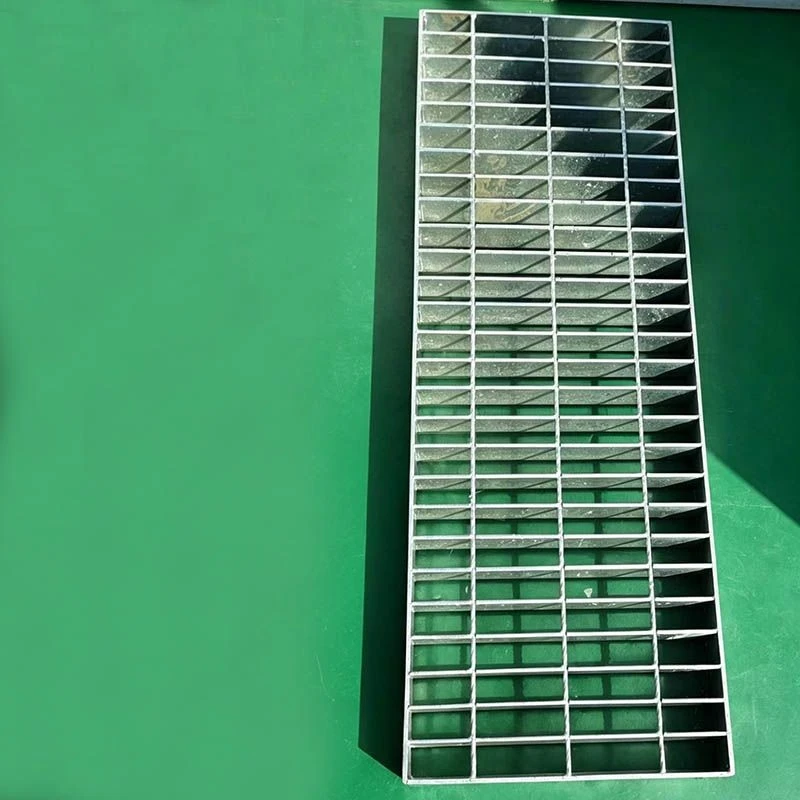

We manufacture this heavy duty bar grating from high-quality flat steel bars. The flat bar thickness ranges from 3 mm to 20 mm, while the overall grating height ranges from 30 mm to 100 mm. Thicker bars provide greater load-bearing capacity.

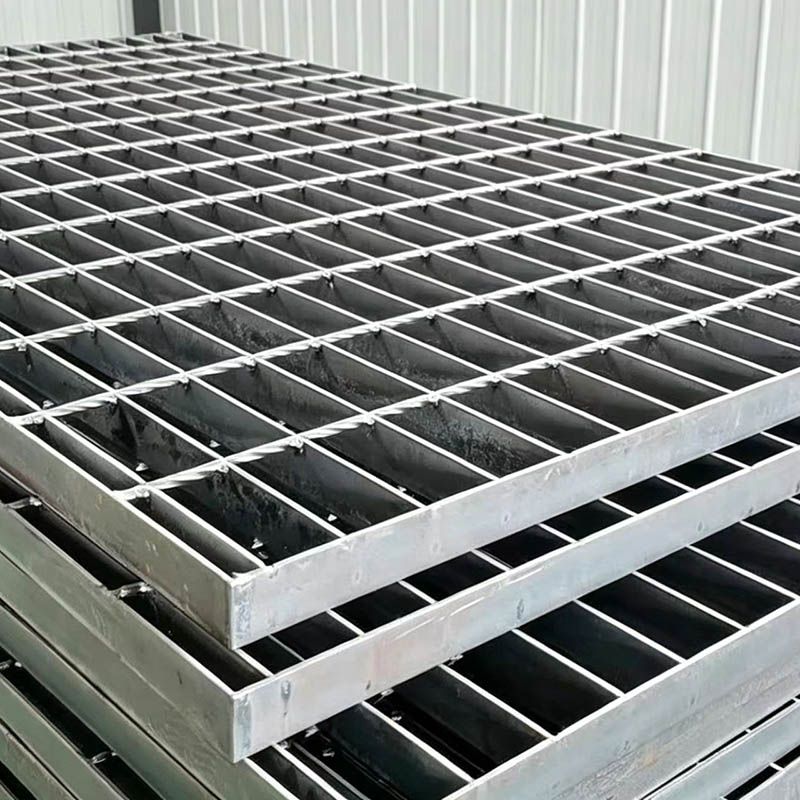

The flat bars are press-welded together with twisted square bars to form a rigid structure. The finished grating is then hot-dip galvanized in molten zinc at temperatures between 450°C and 460°C. The zinc coating exceeds 80 microns in thickness, providing excellent corrosion resistance.
This product can provide a service life of 20 to 50 years in outdoor environments, reducing maintenance and replacement requirements.
Key Data Table
|
Parameter |
Technical Requirement |
Note |
|
Main Material |
Q235B or Q345B |
Selected according to load requirements |
|
Flat Bar Thickness |
3–20 mm |
Thicker bars provide higher load capacity |
|
Grating Height |
30–100 mm |
Overall grating thickness |
|
Surface Finish |
Hot-dip galvanized |
Zinc bath temperature: 450–460°C |
|
Zinc Thickness |
≥80 μm (approximately 600 g/m²) |
Service life of 20–50 years outdoors |
|
Process |
Automatic press welding |
Flat bar + twisted square bar |
Why Buy This Product
This heavy duty bar grating offers excellent impact resistance while allowing air, heat, and light to pass through efficiently.
Unlike wire mesh or punched metal sheets, our grating is designed specifically for demanding industrial applications. We manufacture safety products for factories, chemical plants, oil refineries, and other facilities with strict safety requirements.
Our manufacturing system complies with ISO 9001 standards, ensuring consistent product quality and reliability. With this heavy duty bar grating, you receive a strong and durable flooring solution that remains safe and dependable for decades.
Trust our Product for your next project.
