System Design for Livestock Control
Farm fences are required to securely contain cattle and sheep while withstanding long-term exposure to sun, rain, and continuous pressure from animals leaning on the structure.
We offer two main fencing systems: wire mesh fencing and high-tension smooth wire fencing. We do not simply twist wires together-we provide a complete livestock management fencing system.

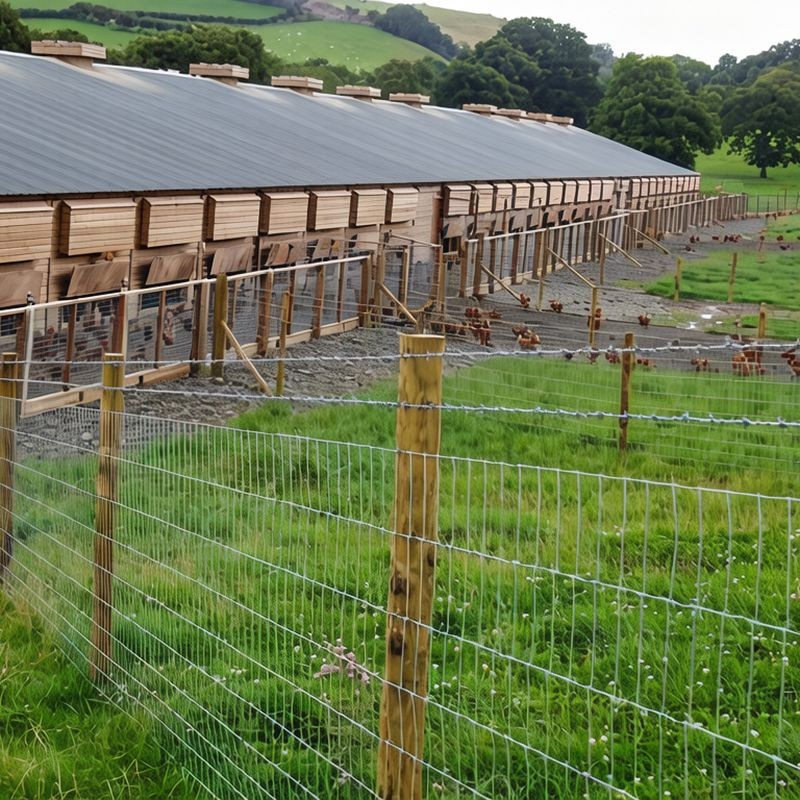

This farm perimeter fence ensures effective livestock containment and farm boundary protection.
Two Types for Different Animals

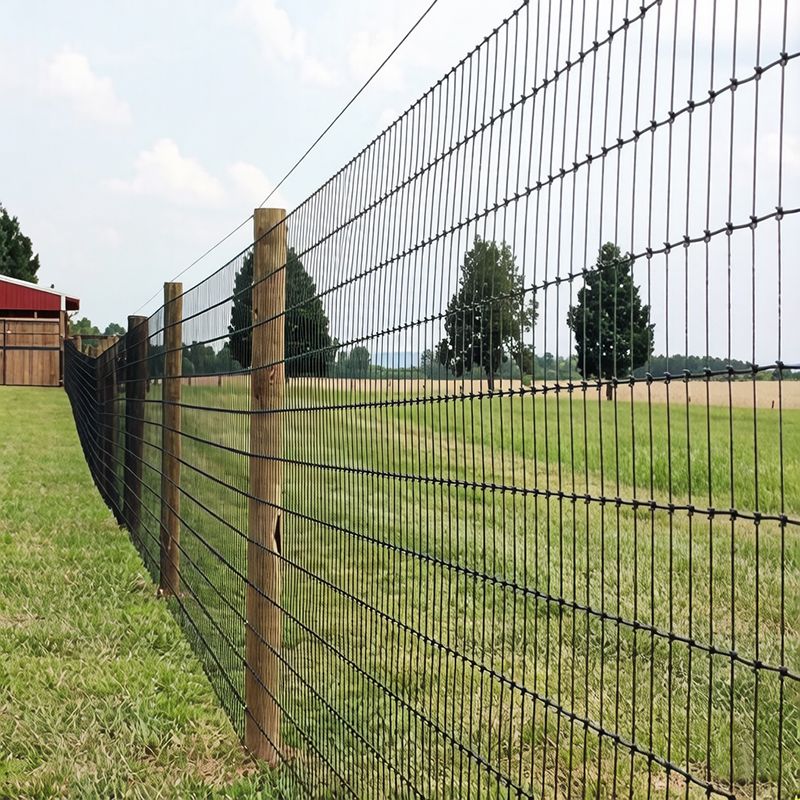

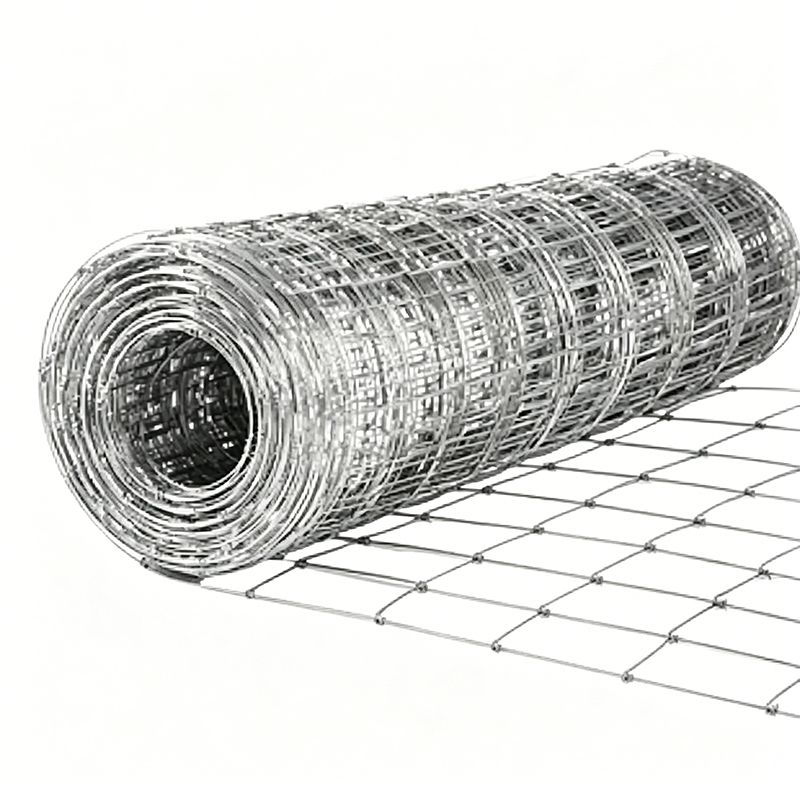

The first type is wire mesh fencing. It is made by weaving or welding galvanized steel wire into grid structures. This is the most commonly used solution because it is safe for animals and reduces injury risk.
The second type is high-tension smooth wire fencing, also known as twist wire fencing. High-strength steel wires are installed in parallel tension lines. This solution offers lower cost and is suitable for large-area fencing. The zinc coating remains stable and is not easily damaged.
We use hot-dip galvanizing for corrosion protection. The zinc coating thickness is at least 60 microns. PVC coating can also be applied over galvanized wire for dual protection.
This farm perimeter fence can achieve a service life of more than 15 years under normal outdoor conditions.
Key Data Table
|
Parameter |
Technical Requirement |
Best For |
|
Type One |
Wire mesh fence (grid fencing) |
Cattle, sheep, pigs; animal-friendly design |
|
Type Two |
High-tension smooth wire (twist wire fencing) |
Cost-effective large-area fencing |
|
Corrosion Protection |
Hot-dip galvanized ≥60 μm |
Optional PVC + zinc dual coating |
|
Wire Diameter |
2.5–4.0 mm |
Strength increases with diameter |
|
Cattle Fence Height |
1.2 meters |
Standard livestock containment |
|
Sheep Fence Height |
1.02 meters |
Recommended standard |
|
Pig Fence Height |
0.98 meters |
Low-height containment |
|
Post Spacing |
2.5–3.5 meters |
Structural stability requirement |
|
Corner Post Depth |
0.6–0.8 meters in concrete |
Reinforced anchoring |
|
Tension Force |
700–900 N |
Applied using professional tensioning tools |
Why Buy This Product
We recommend considering terrain variations such as slopes, hills, and low points during fence planning. Corner posts should be placed at structural high-stress points for better stability.
The bottom of the mesh is typically installed approximately 15 cm above ground level to reduce corrosion and allow maintenance access.
Design includes access gates and passage areas for farm operations. On-site installation support can be provided upon request. We also supply complete accessory kits, including posts, clips, and tensioning tools.
Choose this farm perimeter fence for reliable, long-term livestock management and farm boundary control.
