Soft Cover That Lets Roots Grow
Ecological restoration projects require vegetation to establish strong root systems while maintaining slope stability against rainfall and surface runoff.
Simple erosion control systems cannot simultaneously provide soil retention and structural reinforcement. Hard concrete solutions prevent vegetation growth.
We provide a flexible slope protection system designed to support vegetation while preventing soil erosion.
This reinforced macmat is an effective solution for green slope stabilization.
Two Parts That Work as One

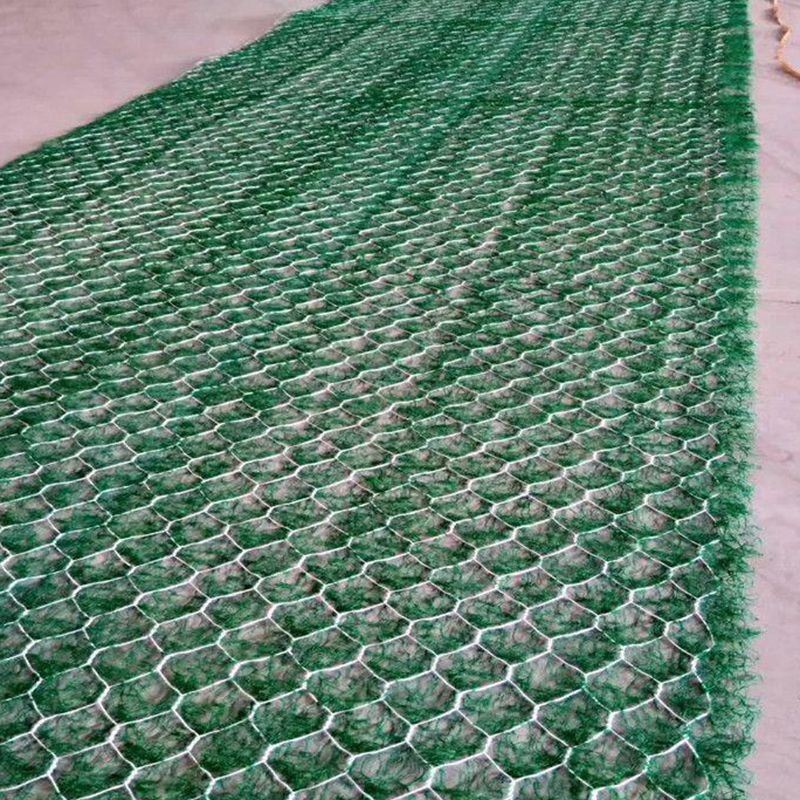

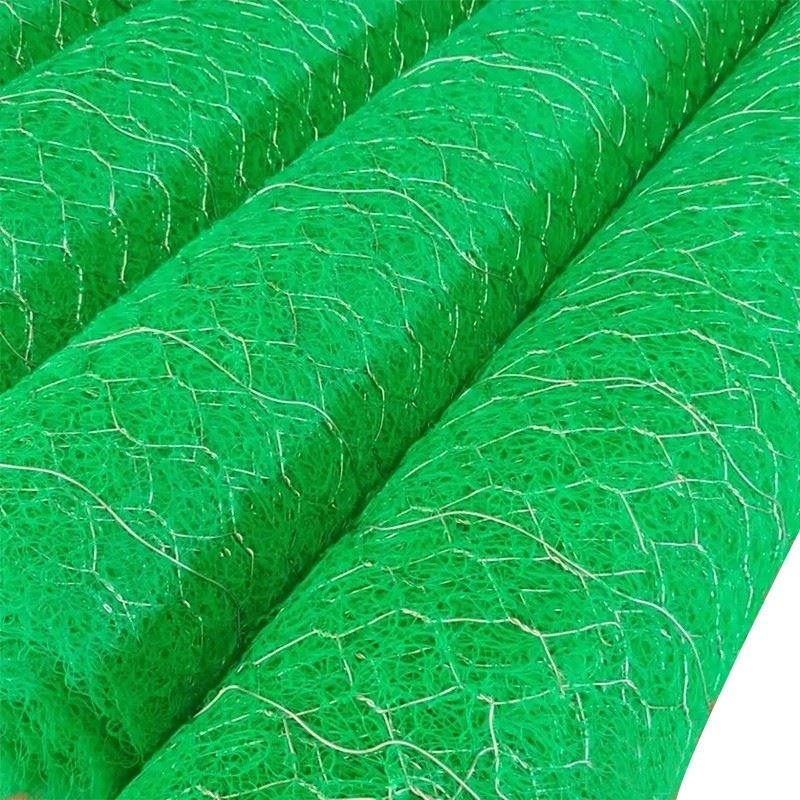

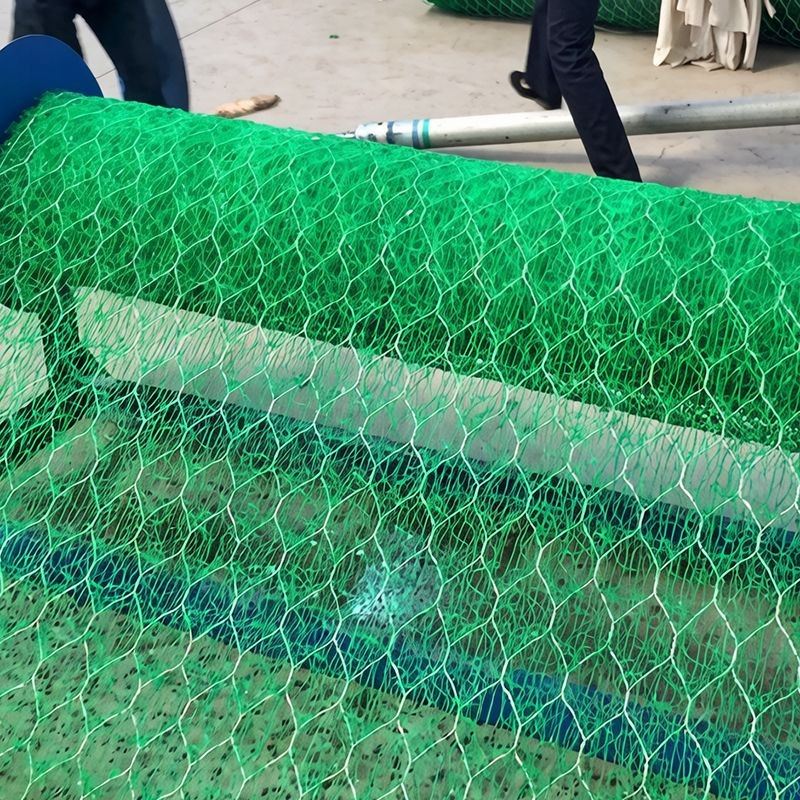

This product is also known as a reinforced 3D vegetation mat system. It consists of two integrated functional layers:

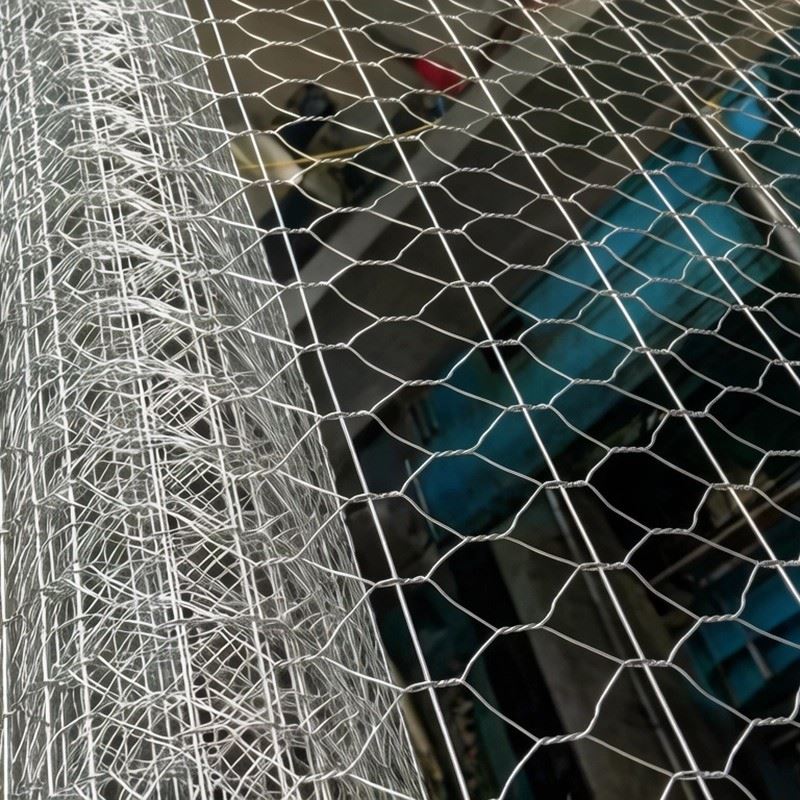

The first layer is a double-twist hexagonal steel wire mesh made from low-carbon steel. The surface is protected using hot-dip galvanization or Galfan coating for enhanced corrosion resistance.

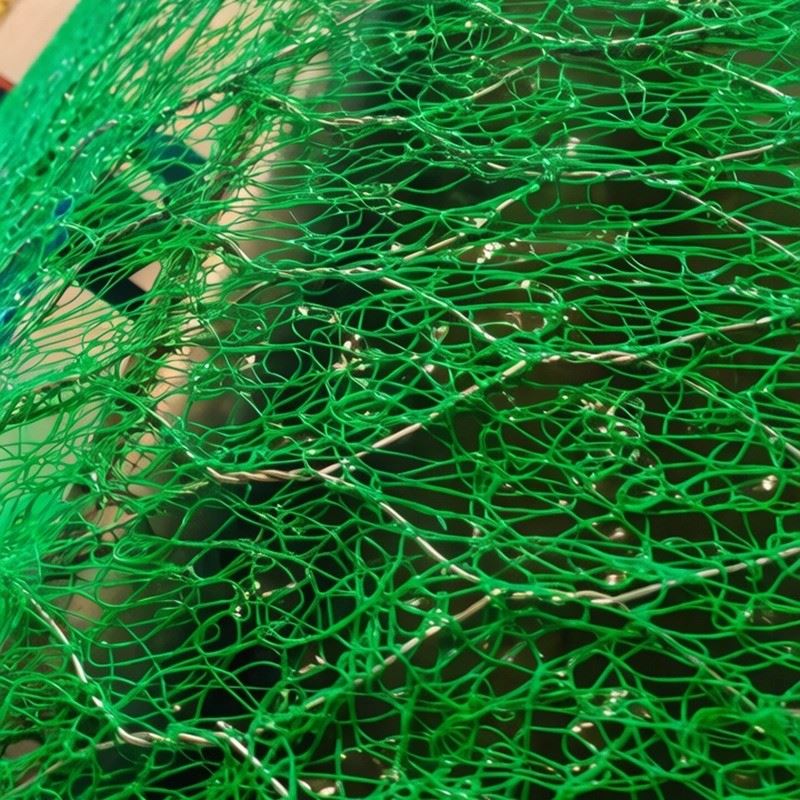

The second layer is a thermally bonded polypropylene 3D erosion control pad. Its open structure exceeds 90% void ratio, allowing soil and roots to interlock naturally.
Common mesh opening sizes include 60×80 mm and 80×100 mm. Steel wire diameter typically ranges from 2.0 mm to 2.7 mm.
The polypropylene 3D pad has a typical mass of approximately 500 g/m² and a thickness of about 12 mm.
This reinforced macmat provides a simple yet highly effective slope protection system.
Key Data Table
|
Parameter |
Technical Requirement |
Note |
|
Structure |
Double-twist hexagonal steel mesh + polypropylene 3D pad |
Integrated two-layer system |
|
Steel Material |
Low-carbon steel with hot-dip zinc / Galfan / PVC coating |
Corrosion protection options |
|
Pad Material |
Thermally bonded polypropylene, >90% void structure |
High permeability and root growth support |
|
Mesh Opening |
60×80 mm or 80×100 mm |
Standard engineering options |
|
Wire Diameter |
2.0 – 2.7 mm |
Matched to structural load |
|
Zinc Coating |
≥100 g/m² (hot-dip galvanized) |
Or Galfan (Zn-Al-RE alloy system) |
|
Pad Weight |
150 – 600 g/m² (typical 500 ± 50 g/m²) |
Project-dependent specification |
|
Pad Thickness |
Approximately 12 mm |
Standard configuration |
|

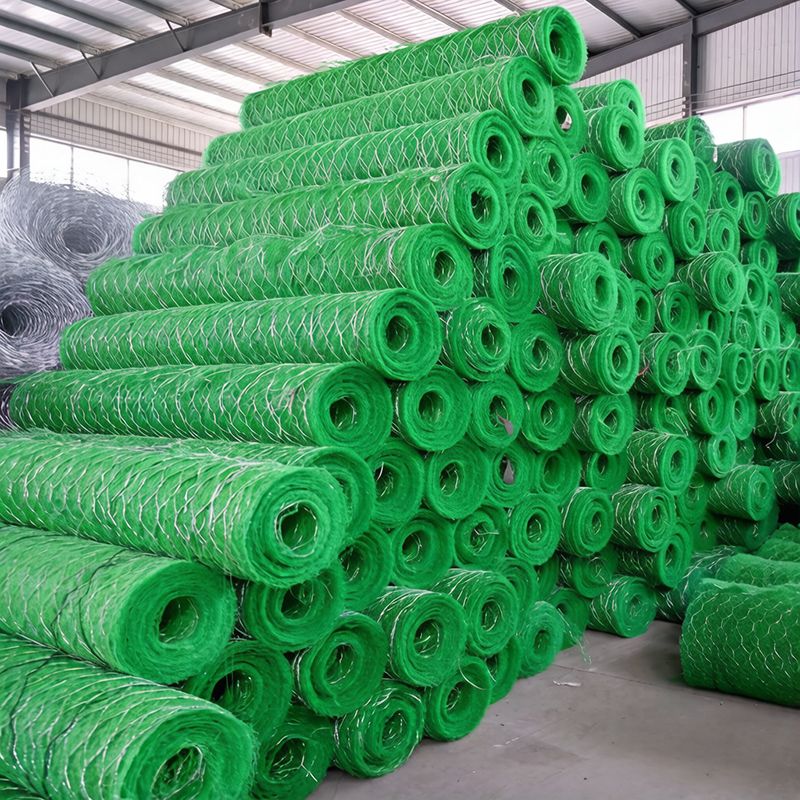

Roll Size |
2.0 m × 25 m = 50 m² per roll |
Tolerance: width ±5%, length ±1% |
Why Buy This Product
This product is manufactured in compliance with EN 10223-3 and GB/T 17638 standards.
We can provide CNAS-certified laboratory test reports covering tensile strength, bonding strength, and peel resistance upon request.
This reinforced macmat is recommended for riverbank protection, canal lining, and ecological slope restoration projects.
The steel mesh layer provides structural reinforcement, while the 3D polypropylene layer supports vegetation growth and soil stabilization.
Choose our Product for durable and environmentally friendly slope engineering solutions.
