Stop Soil Loss, Let Grass Grow
Riverbanks, slopes, and embankments require erosion control systems that prevent soil loss while still allowing vegetation to grow through the protective layer.
A simple wire mesh cannot prevent fine soil erosion. A simple geotextile alone lacks sufficient mechanical strength. We combine both functions into a single engineered system.
We do not manufacture single-function materials. We produce an eco-friendly slope protection system that performs both reinforcement and vegetation support functions.

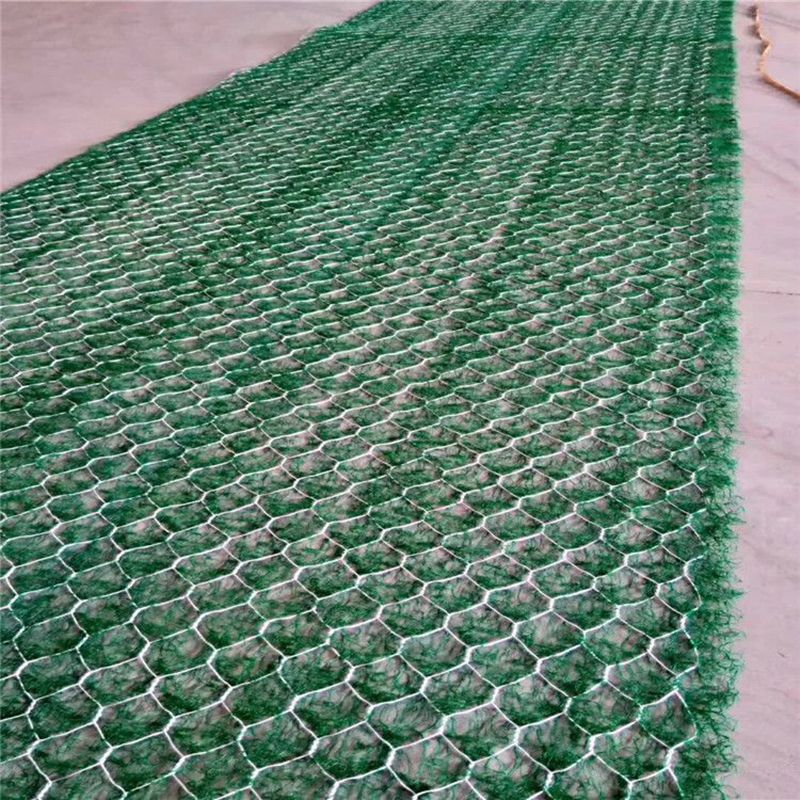

This composite reinforced geomat effectively controls erosion while promoting plant growth.
Three Layers for Strong Protection
This product is composed of three or more functional layers.
The basic structure includes a steel wire mesh, an intermediate geotextile layer, and a double-sided 3D polymer erosion control mat.
We also produce an alternative fabric-based structure, where short-fiber geotextile is laminated on both sides of the wire mesh to prevent soil washout.
Another reinforced version integrates a structural grid layer, using fiberglass or polymer reinforcement embedded into the mesh system to provide additional tensile strength.
The steel wire tensile strength is ≥35 kN/m. The Galfan coating weight is 230–250 g/m² minimum.
This composite reinforced geomat performs effectively on riverbanks, slopes, and soil stabilization projects.
Key Data Table
|
Composite Type |
Structure |
Main Performance |
|
Fabric Type |
Wire mesh + short-fiber geotextile (top and bottom) |
Prevents soil erosion and washout |
|
Grid Reinforced Type |
Wire mesh + 3D polymer mat + fiberglass/plastic grid |
Dual reinforcement strength |
|
Biomass Type |
Integrated coconut fiber mat |
Improves soil retention and fertilizer holding capacity |
|
Wire Tensile Strength |
≥35 kN/m |
Structural reinforcement performance |
|
Galfan Coating |
5% Al-Zn-RE alloy, 230–250 g/m² minimum |
Conforms to EN 10223-3 wrap corrosion test |
|
Polymer Mat Tensile Strength |
≥1.5–3.0 kN/m (machine direction) |
Maintains ≥80% strength after UV aging |
|
Peel Strength |
≥30 N/mm |
Bond strength between polymer layer and mesh |
|
Total Weight |
600–1680 g/m² (customized) |
Based on engineering design requirements |
Why Buy This Product
We note that this product does not follow a single mandatory international standard. Technical specifications must be confirmed according to project requirements.
European and Australian markets commonly refer to EN 10223-3 standards. We can provide CNAS-certified laboratory test reports upon request.
We also comply with REACH and RoHS environmental regulations for export markets.
Customized testing plans and project-specific engineering support are available.
Choose this composite reinforced geomat for reliable riverbank protection, slope stabilization, and ecological restoration projects.
